Pipeline Stages¶

Overview¶

The Research Software Observatory – Data Pipeline orchestrates the consolidation, enrichment, and integration of software metadata into analysis-ready datasets consumed by the Research Software Observatory.

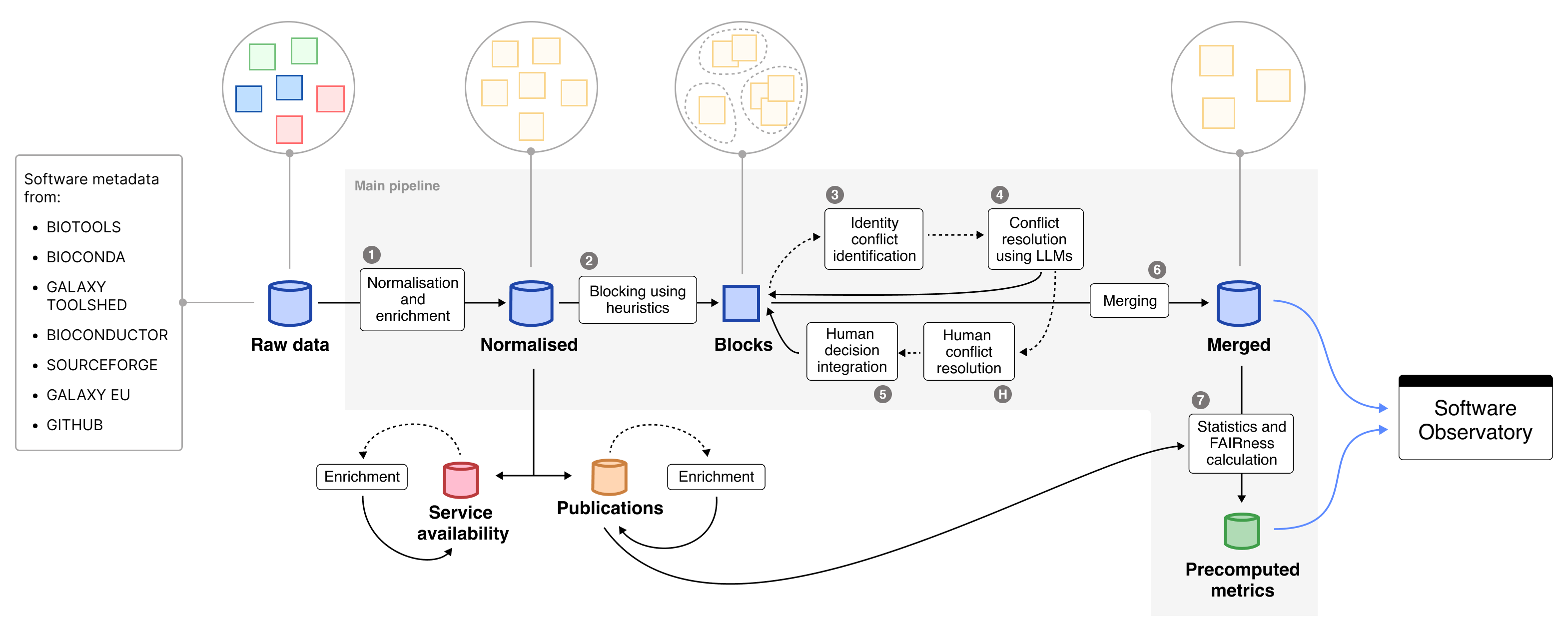

Pipeline overview

Overview of the main and auxiliary pipelines of the Research Software Observatory. Raw data importers are external to this repository and act as upstream inputs.

The pipeline operates downstream of independent importer processes, which periodically collect and normalize metadata from external registries such as bio.tools, Bioconda, Galaxy, and others. These importer components are maintained separately and populate the raw data layer, which serves as the entry point of this pipeline.

The pipeline then performs:

Normalization and enrichment of software metadata
Integration and disambiguation of duplicate records
FAIRsoft score computation and statistics generation
Auxiliary enrichments such as publications and service availability

Execution model¶

In normal maintenance work, the pipeline is usually executed in one of two ways:

Run the main pipeline until disambiguation
This is the usual option when new identity conflicts may require human review. The pipeline generates the intermediate files, performs automated disambiguation, and creates the outputs needed for manual annotation.

bash rsetl run --until disambiguation --tag <TAG>

Run the full pipeline
This is used when the data can be processed end-to-end, or when no manual curation round is expected.

bash rsetl run --tag <TAG>

After human annotation has been completed and committed, the latest relevant run should be resumed from the human_updates stage. This reuses the existing run directory and applies the curator decisions before continuing with merge, statistics, and FAIRsoft scoring.

rsetl run --resume-run latest --from-stage human_updates

Alternatively, use the explicit run ID:

rsetl run --resume-run <RUN_ID> --from-stage human_updates

This is important because the human annotations correspond to the conflict files generated in that specific run. Starting a fresh run after annotation may produce different block or conflict identifiers and can make the annotations impossible to apply correctly.

Main pipeline stages¶

The full pipeline is composed of the following stages, in execution order:

#	Stage	CLI Module / Script	Description	External Services
1	Transformation	`src.adapters.cli.transformation.transformation`	Loads and normalizes raw metadata from MongoDB sources. Incremental by default (`--updated-within-days`, default 30).	MongoDB
2	Grouping / blocking & recovery	`src.adapters.cli.integration.group_and_recovery`	Groups records into candidate identity blocks using names and repository-like links.	MongoDB
—	Remove OEB metrics	`scripts/utils/remove_oeb_metrics.py`	Removes redundant OpenEBench metric entries to reduce noise and processing time.	—
3	Conflict detection	`src.adapters.cli.integration.conflict_detection`	Identifies disconnected records within blocks as potential identity conflicts.	—
—	Simplify blocks	`scripts/utils/simplify_grouped_entries.py`	Reduces block structure to the minimal representation needed downstream.	—
—	JSON to JSONL conversion	`scripts/utils/json_to_jsonl.py`	Converts conflict and block files into JSONL format.	—
4	Disambiguation	`src.adapters.cli.integration.disambiguation`	Resolves conflicts using heuristics and LLM-based agreement scoring. Can generate manual-review issues for unresolved cases.	Gepeto, GitHub, GitLab
5	Human updates	`src.adapters.cli.integration.update_disambiguation_after_human_resolution`	Integrates curator decisions from `human_annotations/` into the disambiguation output.	Git
6	Merge	`src.adapters.cli.integration.merge_entries`	Consolidates resolved records into unified software entries, carrying each tool's `_id` over from the previous run and promoting them into the live collection. See Tool identity & collection promotion.	MongoDB
7	License normalization	`src.adapters.cli.post_transformation.normalize_licenses`	Maps license information to standardized SPDX identifiers. Runs after merge — it rewrites `data.license` in the live `tools` collection, which merge rebuilds every run.	MongoDB
8	Reindex	`src.adapters.cli.integration.reindex`	Asks the Observatory API to rebuild the `tools` collection's search/filter indexes, which promotion leaves with only `_id`. See Tool indexes & reindexing.	Observatory API
9	FAIRsoft scoring	`src.adapters.cli.fair_scores`	Computes FAIRsoft indicators and scores for software entries. Incremental by default (only tools whose `last_updated_at` is within `--updated-within-days`).	MongoDB
10	Statistics	`src.adapters.cli.generate_stats`	Computes descriptive statistics for Observatory dashboards.	MongoDB
11	Similarity	`src.adapters.cli.similarity`	Embeds tool descriptions using `gte-modernbert-base` and precomputes the top-10 nearest neighbours per tool, stored in `similaritiesDev` to power "similar software" recommendations.	MongoDB, HuggingFace (model download)

Stage order

License normalization and reindex run after merge, and FAIRsoft scoring runs before statistics. The STAGES list in src/adapters/cli/pipeline_full.py is the source of truth (… merge → license-normalization → reindex → fairsoft → stats → similarity).

Incremental by default

Transformation and FAIRsoft scoring only process entries changed within the last --updated-within-days days (default 30); pass --updated-within-days 0 for a full pass. This works because merge only bumps a tool's last_updated_at when its content actually changes (see Tool identity & collection promotion).

Practical maintenance workflow¶

Standard run with possible human curation¶

Use this when you expect some conflicts to require manual review.

rsetl run --until disambiguation --tag <TAG>

Then complete and commit the human annotations.

Once annotation is finished, resume the same run:

rsetl run --resume-run latest --from-stage human_updates

This executes:

human_updates
merge
license-normalization
reindex
fairsoft
stats
similarity

unless one of those stages is skipped with a command-line option. reindex is skipped automatically when merge is (--no-merge).

Full automatic run¶

Use this when you want to execute the full pipeline in one pass.

rsetl run --tag <TAG>

Resume a specific run¶

Use this when the run to resume is not the latest one.

rsetl run --resume-run <RUN_ID> --from-stage human_updates

Run only one stage¶

Useful for debugging or recomputing a downstream step.

rsetl run --resume-run <RUN_ID> --only stats

Outputs¶

Primary outputs¶

The pipeline produces:

Merged software records, stored in MongoDB. The default target collection is toolsDev.
Precomputed metrics and FAIRsoft scores, stored in MongoDB. The default target collection is computationsDev.
Precomputed similarity scores, stored in MongoDB. The default target collection is similaritiesDev.

All collection names are configurable via PipelineConfig (see Development Guide and the environment overrides in the CLI Reference); the values above are the defaults.

Run artifacts¶

Each execution generates a versioned run directory under:

data/integration/runs/<run_id>/

Typical contents:

├── grouped_entries.<run_id>.json
├── grouped_entries.no_opeb_metrics.<run_id>.json
├── conflicts.<run_id>.json
├── grouped_entries.simplified.<run_id>.json
├── conflicts.<run_id>.jsonl
├── grouped_entries.simplified.<run_id>.jsonl
├── disambiguation.<run_id>.jsonl
└── manifest.json

A latest symlink points to the most recent run directory.

The manifest.json file records:

run ID and run directory
git short SHA
created and last-updated timestamps
paths to generated files
selected and executed stages
latest execution options
masked environment configuration
execution history for resumed runs

Tool identity & collection promotion¶

A tool's _id must outlive the run that produced it: FAIR scores upsert on computationsDev.createdFrom = [str(tool._id)], and the front-end looks tools up by similaritiesDev.tool_id. If merge minted a fresh _id every run, all of those references would go stale.

Identity carry-over. A tool's lineage is its source list — the pretools entries it was merged from. Each newly merged tool inherits the _id of the previous tool it shares the most lineage with. When several tools collapse into one, the oldest id survives; when one tool splits, the dominant successor keeps it. The assignment is pure and does not depend on iteration order (src/application/services/integration/tool_identity.py).

Staging and promotion. Because the new entries inherit from the live collection, merge cannot write into it directly. Instead:

Merge builds into a staging collection (toolsDev_next).
finalize_run archives the live collection as toolsDev_archive_<run_id> and promotes staging in its place — two atomic renames.
Archive retention keeps only the newest tools_archive_keep archives (default 2, env TOOLS_ARCHIVE_KEEP) and drops the rest, so archives don't accumulate one per run.

Use --no-promote on the merge stage to build staging without swapping it in. To reverse a promotion, run:

rsetl rollback <run_id>

The number to watch is contested. The merge stage prints preserved / new / retired / contested; contested counts tools where the oldest ancestor won over one that shared more lineage. On a healthy run it should be near zero — if it isn't, the id-ordering in tool_identity.py deserves a second look.

Tool indexes & reindexing¶

Promotion renames the old tools collection to the archive (which keeps its indexes) and swaps in the staging collection that merge built with plain inserts — so the freshly-promoted live collection has only its _id index. That breaks the API's /search (text index required for $text query) and turns filtered searches into collection scans.

The index definitions live in the API repository (they encode its query shapes and a collation the search route must match), so the pipeline does not own them. The reindex stage POSTs to the API's admin reindex endpoint via ObservatoryApiClient, and the API rebuilds them. It runs right after license normalization, and only when merge does — it is skipped automatically under --no-merge.

Two failure rules protect against a broken live collection:

A missing OBSERVATORY_ADMIN_TOKEN is checked before merge runs, so a misconfiguration can't promote a collection it then can't reindex.
A reindex API call that fails at run time only warns and exits 0 — the collection is already live, and the API re-ensures its indexes on the next restart.

Rollback (rsetl rollback <run_id>) needs no reindex: it restores the archive, indexes and all.

Unattended scheduling¶

How the VM actually runs this

In the production VM deployment the pipeline runs as a Docker container triggered by host cron, not by the in-process scheduler below — see the Deployment guide. The APScheduler runner described here is the optional, self-contained alternative for environments without an external scheduler. Both use the same two-phase model.

The pipeline can run on a schedule via an optional APScheduler-based runner (src/adapters/scheduler/). Because the human updates stage requires curators to review GitHub issues and record decisions as Git annotations, automation uses a two-phase model:

Phase A — automated (on a fixed cadence). Every stage except human updates, which is skipped; the last set of curator decisions already in the repo is used implicitly by merge. This is a single command:

bash rsetl run --no-human-updates

Phase B — curator-triggered. After curators close the open GitHub issues, apply their decisions and continue:

bash rsetl run --only human_updates rsetl run --from-stage merge

The scheduler runs two jobs, each with a configurable crontab string:

Job	Config field (env var)	Default
`full_pipeline` (Phase A)	`full_pipeline_cron` (`FULL_PIPELINE_CRON`)	`0 1 * * mon,thu` (twice weekly, 01:00 UTC)
`publication_enrichment`	`publication_enrichment_cron` (`PUBLICATION_ENRICHMENT_CRON`)	`0 3 * * sun` (weekly, Sun 03:00 UTC)

Both jobs register with max_instances=1 (two runs must never overlap — they both promote into the live collection). See the CLI Reference for rsetl scheduler start / run-now.

Auxiliary pipelines¶

Auxiliary pipelines run independently from the main integration workflow.

Publications enrichment¶

Field	Value
CLI	`rsetl enrich-publications`
Module	`adapters.cli.enrich_publications`
Description	Enriches publication metadata, citation counts, and cited-by counts using Europe PMC.
Output	Updates the MongoDB publication collection, `publicationsMetadataDev` by default, and optionally writes a JSONL cache.
External services	Europe PMC API

For each publication the enrichment fetches:

Metadata — title, abstract, authors, journal, year, PMID, and source identifier.
citations — publications that cite this paper, grouped by year, sourced from the Europe PMC /{source}/{id}/citations endpoint.
citedBy — same dataset as citations, stored under a dedicated field for downstream consumers that distinguish between outgoing and incoming citation relationships.

Both citations and citedBy are stored as a list with a single entry of the form:

[
  {
    "source": "Europe PMC",
    "count": {
      "2020": 3,
      "2021": 7,
      "total": 10
    }
  }
]

Examples:

rsetl enrich-publications --limit 100
rsetl enrich-publications --progress-every 100
rsetl enrich-publications --no-update-db
rsetl enrich-publications --no-skip-existing-europe-pmc-citations

Web availability¶

Field	Value
CLI	`rsetl run-webavailability`
Module	`adapters.cli.web_availability`
Description	Checks availability of tool URLs and web services.
Output	Updates the MongoDB collection used for service availability dashboards.
External services	HTTP endpoints

Example:

rsetl run-webavailability

Notes for maintainers¶

The pipeline is stage-driven and resumable.
Use --until disambiguation when a human annotation round is expected.
After human annotation, resume the same run from human_updates; do not start a fresh run for the annotation integration step.
Use rsetl runs list and rsetl runs latest to identify available runs.
Use --only for targeted recomputation of individual stages.
Use --dry-run-disambiguation to test the disambiguation stage without creating conflict files or GitHub issues.
See CLI Reference for all available command-line options.
See Development Guide for extending or customizing stages.
